Cast iron rollers

Besides rubber rollers ( RR) , our range includes also rollers completely made of cast iron (GR). These roles are useful in the same way as the rubber ones, and are carried out identically . The advantage of this is that the cast iron roll is abrasion resistant with harsher conditions. Nevertheless, the practice shows witch type of role is the most appropriate for a given situation. Factors such as soil type and weather conditions play a big role, and of course the most decisive personal preferences. Cast iron rolls can be supplied with a hollow axle (BD, BN, BT) , an axle with or without thread (AM, IM , AZ ) or a bore and keyway (GB , SP ) . To give you an idea of ​​the roles in our range you will find below a brief overview.

Legend
BN 16mm hollow axle with end cap
BD 16mm hollow axle through & through
BT 20mm hollow axle
AM Threaded axle
AZ Axle without thread
IM Axle with internal thread
GB Bore

Type Options Flange ø Race
GR60F BD, BN, AM, AZ, IM, GB 110mm 35
GR60Z BD, BN, AM, AZ, IM, GB 40/60
GR65F AM 110mm 50
GR70Z BD, BN, AM, AZ, IM, GB 60
GR75F BD, BN, AM, AZ, IM, GB 104mm 52

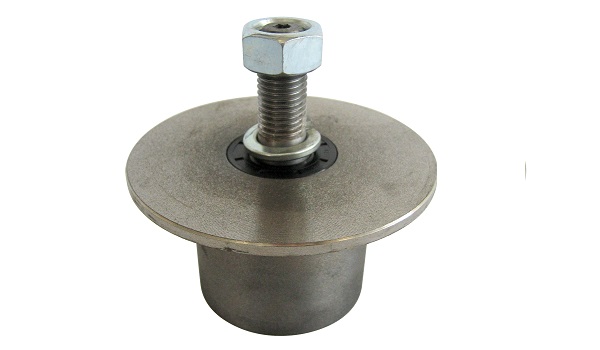

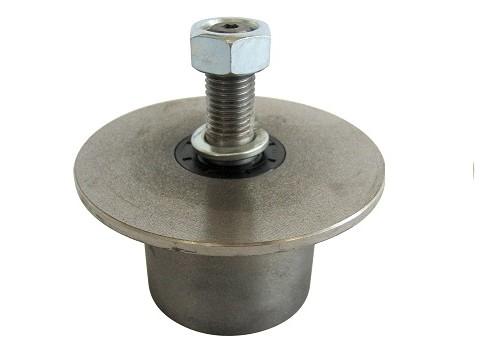

GR80F BD, BN, AM, AZ, IM, GB 120mm 60
GR80Z BD, BN, AM, AZ, IM, GB 60
GR90F BD, BN, AM, AZ, IM, GB 126mm 60
GR90Z BD, BN, AM, AZ, IM, GB  60
GR100F BD, BN, AM, AZ, IM, GB 130mm 29/37/52/60/80
GR100Z BD, BN, AM, AZ, IM, GB  60
GR110F BD, BN, AM, AZ, IM, GB 136/165mm 60/75
GR130F BD, BN, AM, AZ, IM, GB 165mm 60
GR180F BD, BN, AM, AZ, IM, GB 220/240mm 60
GR180Z BD, BN, AM, AZ, IM, GB 60
