Rubber rollers

These rollers are made up of a cast-iron or nylon core having thereon vulcanized rubber. Rubber rollers ( RR) can be supplied with a hollow axle (BD, BN, BT) , an axle with or without thread (AM, AZ) or a bore with keyway (GB , SP) . To give you an idea of ​​the roles included in our range , there is a brief overview below.

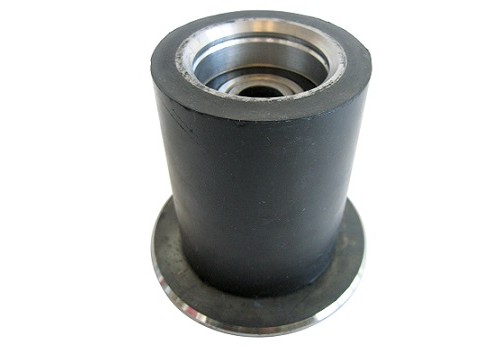

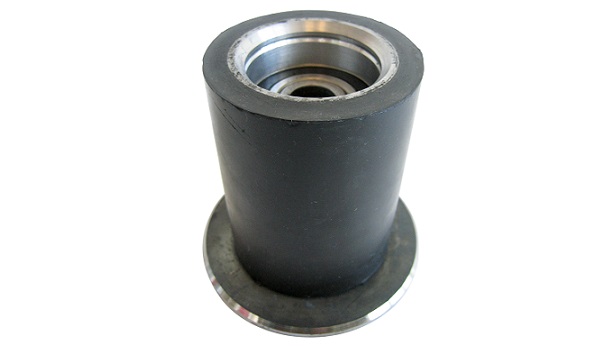

RR75FL94BN

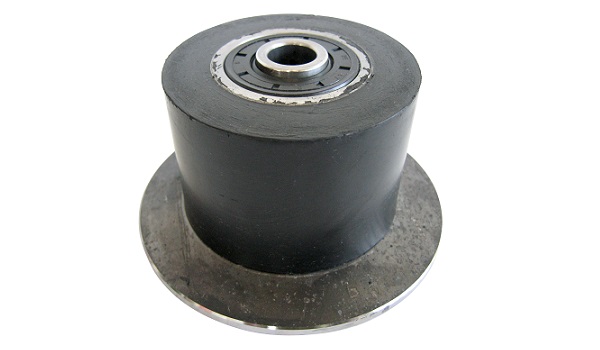

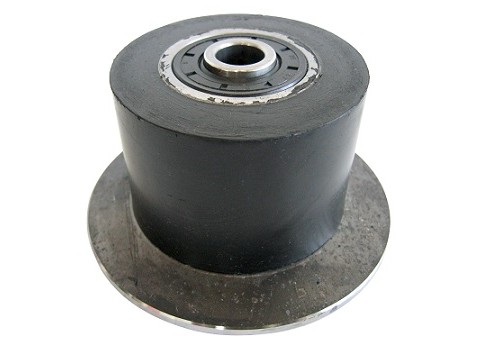

RR90F.BD_.OK_

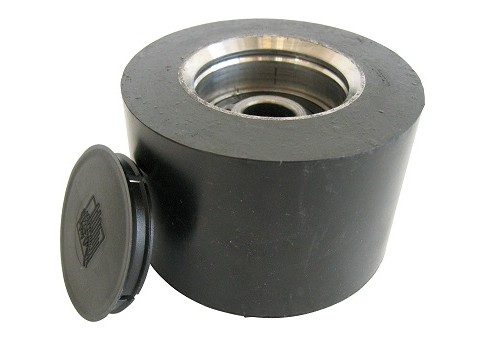

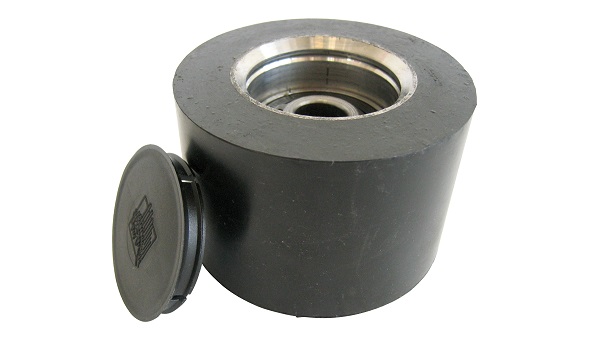

RR90Z.BN_

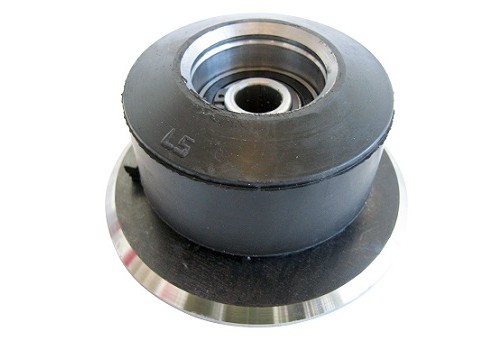

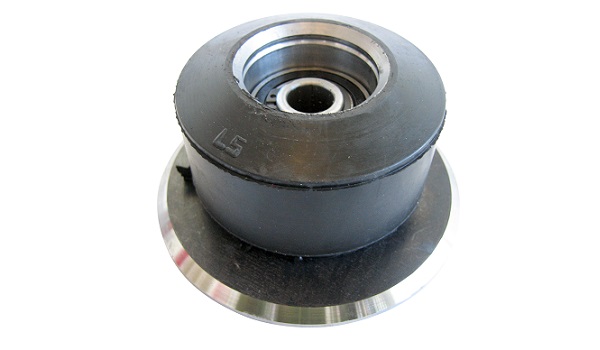

RR95FG.BN_

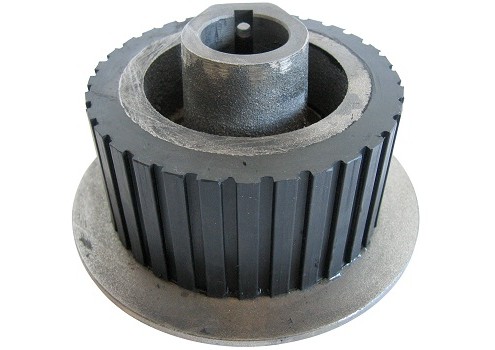

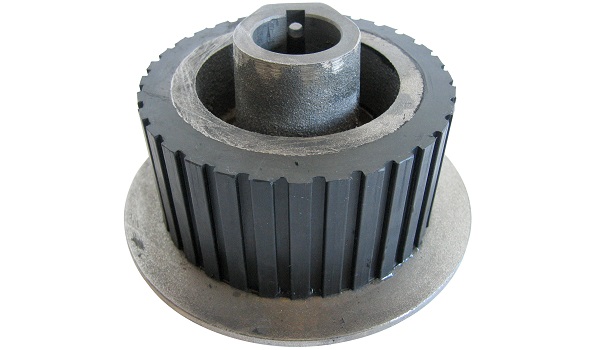

RR132FT

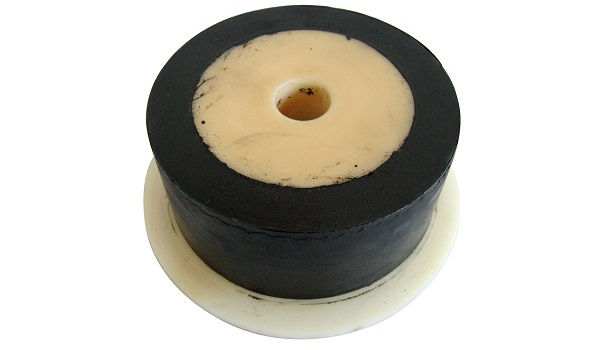

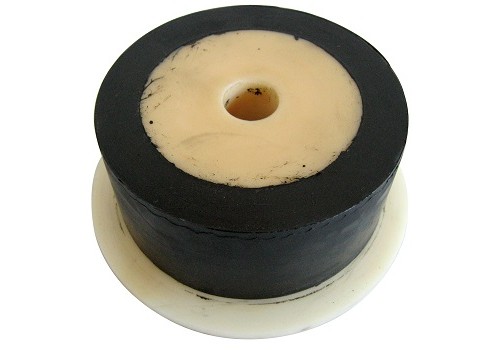

RR140FN

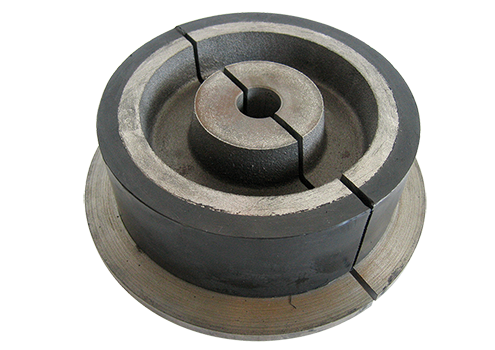

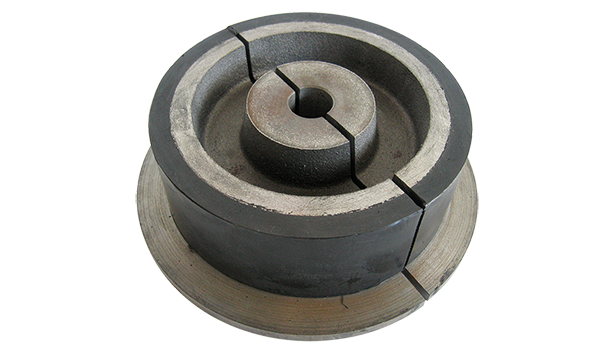

RR180ZD

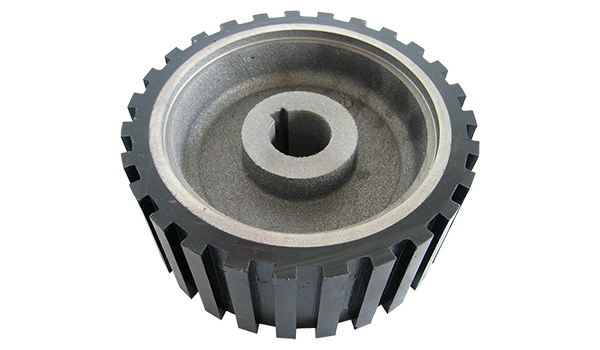

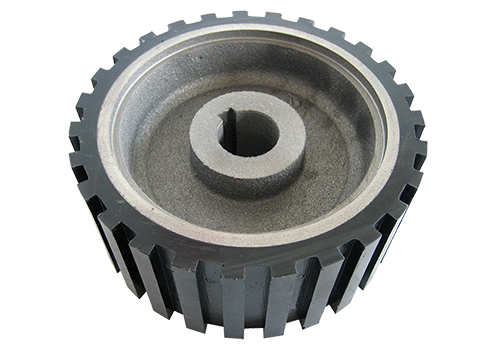

RR194ZT

Legend
BN 16mm hollow axle with end cap
BD 16mm hollow axle through & through
BT 20mm hollow axle
AM Threaded axle
AZ Axle without thread
IM Axle with internal thread
GB Bore
Type Options Flange ø Race particularities
RR70Z BD, BN, AM, AZ, IM, GB – 35/60 –
RR70F BD, BN, AM, AZ, IM, GB 110 60 –
RR75F BN 105 52/94 –
RR75ZG BN – 55 Bevelled edges
RR75ZT BD, BN, AM, AZ, IM, GB – 60 Serrated race
RR80Z BD, BN, AM, AZ, IM, GB – 60 –
RR80F BD, BN, AM, AZ, IM, GB 110 54/60 –
RR90Z BD, BN, AM, AZ, IM, GB – 32/43/60/65/70 –
RR90ZN  BD, BN, AM, AZ, IM, GB – 60 Nylon core
RR90F BD, BN, AM, AZ, IM, GB 130 29/37/52/60/80 –
RR90FN BN 130 60 Nylon core
RR95FG BD, BN, AM, AZ, IM, GB 130 55 Bevelled edges
RR95ZG BN – 55 Bevelled edges
RR95ZB BN – 60 Bevelled edges
RR100F BD, BN, AM, AZ, IM, GB 140/220 54/60 –
RR100FD BD, BN, AM, AZ, IM, GB 118 60 Splittable
RR100Z BD, BN, AM, AZ, IM, GB – 35/60 –
RR110F BD, BN, AM, AZ, IM, GB 150 60/80 –
RR110Z BD, BN, AM, AZ, IM, GB  – 55/60 –
RR120FD BD, BN, AM, AZ, IM, GB 138 60 Splittable
RR130F BD, BN, AM, AZ, IM, GB 170 60 –
RR132ZT GB – 50/65 Serrated race
RR140F BD, BN, AM, AZ, IM, GB 170 60 –
RR140FD GB 170 60 Splittable
RR140FN BD, BN, AM, AZ, IM, GB 170 60 Nylon core
RR140Z BD, BN, AM, AZ, IM, GB – 60 –
RR140ZD GB – 60 Splittable
RR140ZN BD, BN, AM, AZ, IM, GB – 60 Nylon core
RR160F BD, BN, AM, AZ, IM, GB 190 60 –
RR160FD GB 190 60 Splittable
RR160ZD BD, BN, AM, AZ, IM, GB –  60 Splittable and serrated race
RR160Z BD, BN, AM, AZ, IM, GB – 60 –
RR180F BD, BN, AM, AZ, IM, GB 220 50/60 –
RR180FD BD, BN, AM, AZ, IM, GB 220 60 Splittable
RR180FN BD, BN, AM, AZ, IM, GB 220 60 Nylon core
RR180Z BD, BN, AM, AZ, IM, GB – 60 –
RR180ZD BD, BN, AM, AZ, IM, GB 60 Splittable
RR180ZN BD, BN, AM, AZ, IM, GB – 60 Nylon core
RR194ZT BD, BN, AM, AZ, IM, GB – 62 Serrated race
RR194FT BD, BN, AM, AZ, IM, GB 240 60 Serrated race
RR200F BD, BN, AM, AZ, IM, GB 240 60 –
RR200Z BD, BN, AM, AZ, IM, GB – 60 –
RR240F BD, BN, AM, AZ, IM, GB 300 60 –
RR240FN BD, BN, AM, AZ, IM, GB 280 60 Nylon core
RR240Z BD, BN, AM, AZ, IM, GB – 60 –
RR240ZN BD, BN, AM, AZ, IM, GB – 60 Nylon core
